Aimed at medium-to-larger sized premium cinemas, the
Alcons three-way Cinemarray™ CRA24WX is designed for Digital Cinema
applications where maximum quality sound reproduction and perfect coverage are
Featuring two patented RBN401 pro-ribbon drivers, the
CRA24 delivers remarkable clarity, intelligibility and delivers an uncompressed
linear response at any SPL. With up to 90% less distortion and very high
(1600W) peak power handling, the HF section allows maximum screen compensation
without any audible stress on the driver. The patented horizontal dispersion
also extends the stereo imaging to a larger number of seats in the auditorium.
Along with the twin RBN401 HF drivers, the CRA24WX
features a pair of vented 6.5” mid-range drivers and a pair of vented 12”
woofers, with 3” voice-coil design for LF reproduction. With a usable frequency
response of 39Hz - 20kHz and a system efficiency of 105 dB, the CRA24WX
delivers sound of exceptional quality and impact for any content.
By implementing line-source technology throughout the
system, a flat SPL coverage from front to rear is realised, with the
‘proximity’ effect dramatically improving the cinema experience for the
audience further away from the screen. The precise projection also minimises
unwanted acoustic reflections.

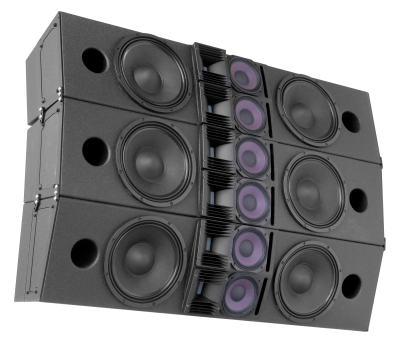

Two different horizontal dispersion models are
available, the CRA24WX/90 (90º) and CRA24WX/120 (120º), both offering vertical
coverage of 30º. The enclosure design enables the assembly of wide vertical
coverage arrays (multiple CRA24WX only), or as under-fill in mixed arrays
(CRA24WX under CRA24N array).
The Cinemarray™ system is powered by an ALC Sentinel
amplifier loudspeaker controller, offering system dedicated processing,
optimisation and protection in factory presets for maximum sound quality and
the ultimate operation reliability.
The Signal Integrity Sensing™ pre-wiring ensures
complete cable/connector compensation between the CRA24WX and ALC,
significantly increasing response accuracy, regardless of cable length and
system impedance, delivering tight, accurate mid and bass response.
Philip ‘Dr Phil’ de Haan, Alcons co-founder and
R&D chief on the design concept behind the Cinemarray series: “The market
request was to bring Alcons’ renowned line-source technology to the cinema, in
a more cost-effective package without any compromise on sound quality and
The result was Cinemarray™; the first scalable,
full-range array system for sound-for-picture applications, that enables an
optimal cinematic sound experience from the first to the furthest seat in even
the largest cinema applications.
Phil continues: “in answer to the cinema-specific
dynamic content and significantly raised patron’s expectations, Cinemarray™
offers the crystal-clear experience of the original sound source, with up-to
90% less distortion and with the proven reliability from our sound
As such, the Cinemarray™ is also increasingly installed in
theatre/cinema hybrid applications, such as Clay Center in Charleston, WV USA,
Lucas Theatre Savannah GA USA. Other cinema
references include Pathé Tuschinski Amsterdam, VUE cinemas, Eye Film institute
the Netherlands, CinemaxX Mannheim Germany, Oslokino Colosseum Norway.
More information is available at www.alconsaudio.com
