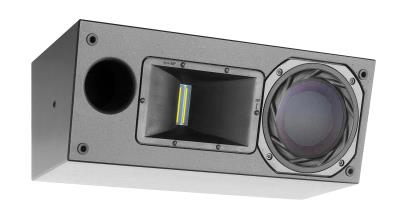

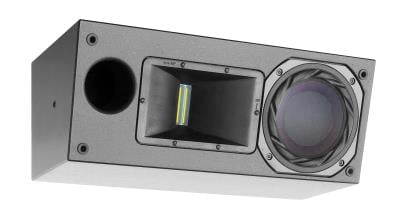

The CRMSC-SRHOR surround is a 2-way passive-filtered
full range loudspeaker, designed to meet all requirements of immersive cinema
surround sound formats.
Featuring the multiple-patented Alcons pro-ribbon
driver technology, the CRMSC-SRHOR monitor combines an exceptional clarity and
intelligibility with an unusually high dynamic range, offering the most
realistic sound reproduction possible.
The CRMSC-SRHOR system consists of one RBN202
pro-ribbon driver for HF and a vented 6.5” mid-bass for LF reproduction. The
CRMSC-SRHOR HF section has an 400 W peak power input, enabling a 1:16 dynamic
range with up to 90% less distortion from 1 kHz to beyond 20 kHz.
The patented 90-degrees horizontal dispersion of the
RBN202 offers a stable coverage to a larger number of seats in the auditorium;
Due to the “compression-less” principle of the pro-ribbon transducer, the
system has a linear response at any SPL.
The CRMSC-SRHOR is designed as matching surround
system for the CRMSC Cinema Reference Monitoring system, or in any small to
medium sized immersive surround system: By utilizing identical MHF components,
in a horizontal arrangement, a perfect voicing matching between screen- and
surround system is realized, resulting in an exceptionally wide and uniform
sound stage throughout the entire listening area. The CRMSC-SRHOR can also be
used as main screen system in smaller applications, with low-frequency support.
The 15-degree slanted enclosure baffle together with
the optional ACO™ color option, provides for easy, low profile wall or ceiling
mounting; Also ideal for height channels in low ceiling rooms. These systems
are, as any other Alcons sound system, available in any color, through Alcons’
ACO™; With Architect Colour Option™, the entire colour spectrum is covered
through 180+ colours from the European RAL™ colour scheme, allowing Alcons
systems to blend perfectly into the background against any type of décor.
For full system performance, the CRMSC-SRHOR needs to
be driven by an ALC Sentinel amplified loudspeaker controller, delivering
maximum sound quality with increased headroom and utmost operation reliability.
The Signal Integrity Sensing™ pre-wiring ensures complete
cable/connector compensation between the CRMSC-SRHOR and ALC Sentinel,
significantly increasing response accuracy, regardless of cable length and
system impedance, with tight and accurate mid and bass response as result.
Typical applications include (surround) sound system
for small premium commercial cinemas, high-end screening rooms,
quality-conscious mix and post-production facilities and dubbing stages. As a
result of Alcons’ tight manufacturing standards, all system cabinets are within
“matched pair” tolerance.
